TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing

الاسم التجاري:	CCO
رقم الطراز:	1
الـ MOQ:	10 قطع
السعر:	قابل للتفاوض
تفاصيل التعبئة:	تصدير التعبئة والتغليف القياسية
شروط الدفع:	خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون، موني جرام

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

قطر رمح:

6 مم - 300 مم

القطر الخارجي:

10 ملم - 310 ملم

شكل:

دائري

القطر الخارجي:

يختلف حسب الحجم

ضغط:

الضغط المنخفض إلى المتوسط

نطاق درجة الحرارة:

-40 درجة مئوية إلى 120 درجة مئوية

نطاق الضغط:

0-0.03MPa

طريقة التثبيت:

ضغط مناسب

القدرة على العرض:

100000pcs/ شهر

إبراز:

TC TYPE oil seal for automotive,industrial oil seal for construction,TC TYPE oil seal with warranty

industrial oil seal for construction

TC TYPE oil seal with warranty

وصف المنتج

1. Product Overview

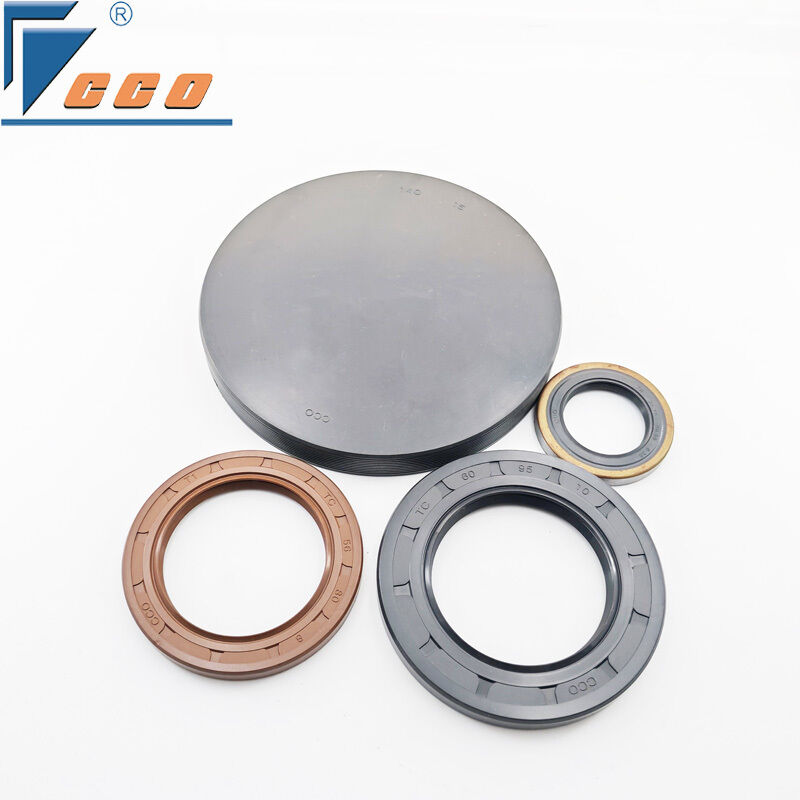

This series covers TC, SC, TB, SB, EC radial shaft oil seals (ISO 6194 compliant), designed for rotary sealing to retain lubricants and block contaminants. Each type differs in lip count, skeleton coating, spring design, and pressure resistance, covering low-to-medium pressure, general industrial, automotive, and aftermarket applications worldwide.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 0

2. Core Type Definitions & Structural Features

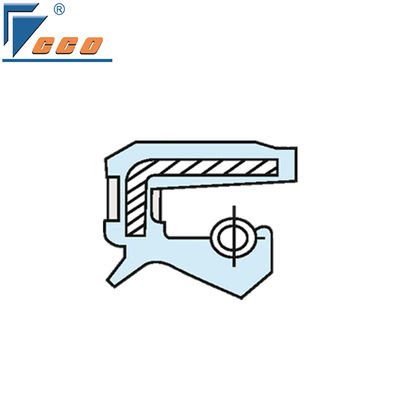

TC: Double lip (main seal + dust lip), full rubber-coated steel skeleton, spring-loaded primary lip; best for dusty environments, universal fit.

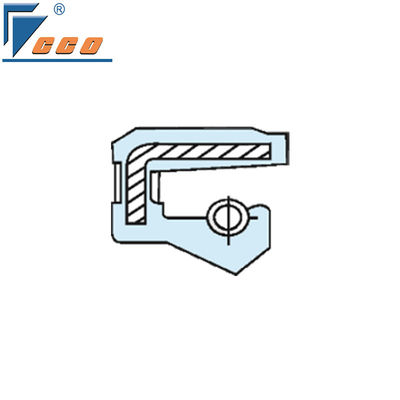

SC: Single lip, full rubber-coated skeleton, spring-loaded; cost-effective, clean indoor applications, no dust requirement.

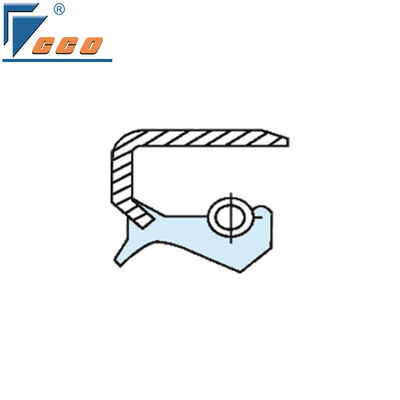

TB: Single lip, bare metal (uncoated) steel skeleton, spring-loaded; high rigidity, stable fit, gearbox/pump internal use.
SB: Single lip, bare metal skeleton, springless; low friction, high-speed light-load, low-cost replacement.
EC: Double lip, thin rubber-coated skeleton, reinforced lip; medium pressure, anti-extrusion, hydraulic/pneumatic systems.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 1

3. Performance

Type	Lip Count	Skeleton Coating	Spring	Max Pressure (Dynamic)	Temp Range (NBR)	Max Speed	Key Feature
TC	2 (Main+Dust)	Full Rubber	Yes	≤0.03 MPa	-40~+120°C	≤15 m/s	Dust-proof, universal
SC	1	Full Rubber	Yes	≤0.03 MPa	-40~+120°C	≤15 m/s	Cost-effective, clean
TB	1	Bare Metal	Yes	≤0.04 MPa	-30~+120°C	≤12 m/s	High rigidity, stable
SB	1	Bare Metal	No	≤0.02 MPa	-30~+100°C	≤20 m/s	Low friction, high speed
EC	2	Thin Rubber	Yes	≤0.1 MPa	-30~+130°C	≤12 m/s	Medium pressure, anti-extrusion

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 2

4. Key Advantages

Full type coverage: One supplier for all general sealing needs, reduces procurement complexity.
ISO standard dimensions (φ6~φ200mm), compatible with global OEM/aftermarket.
Material options: NBR (standard), FKM (high temp), EPDM (water/steam) available.
Easy press-fit installation, suitable for automated assembly lines.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 3

5. Typical Applications

Automotive: Crankshaft, camshaft, gearbox, wheel hub.
Industrial: Motors, fans, pumps, gearboxes, agricultural machinery.
Aftermarket: Universal replacement for light/medium equipment.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 0
